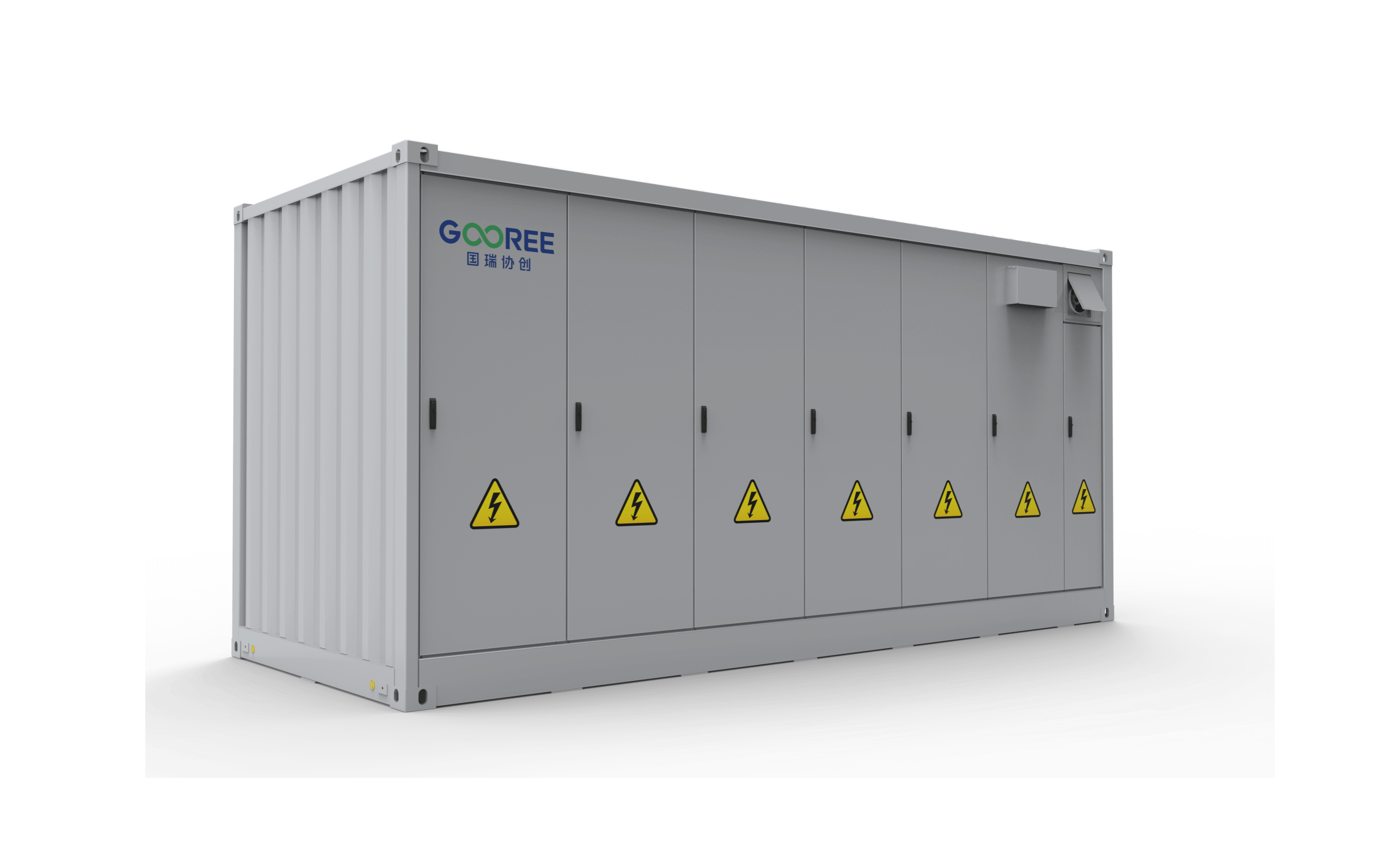

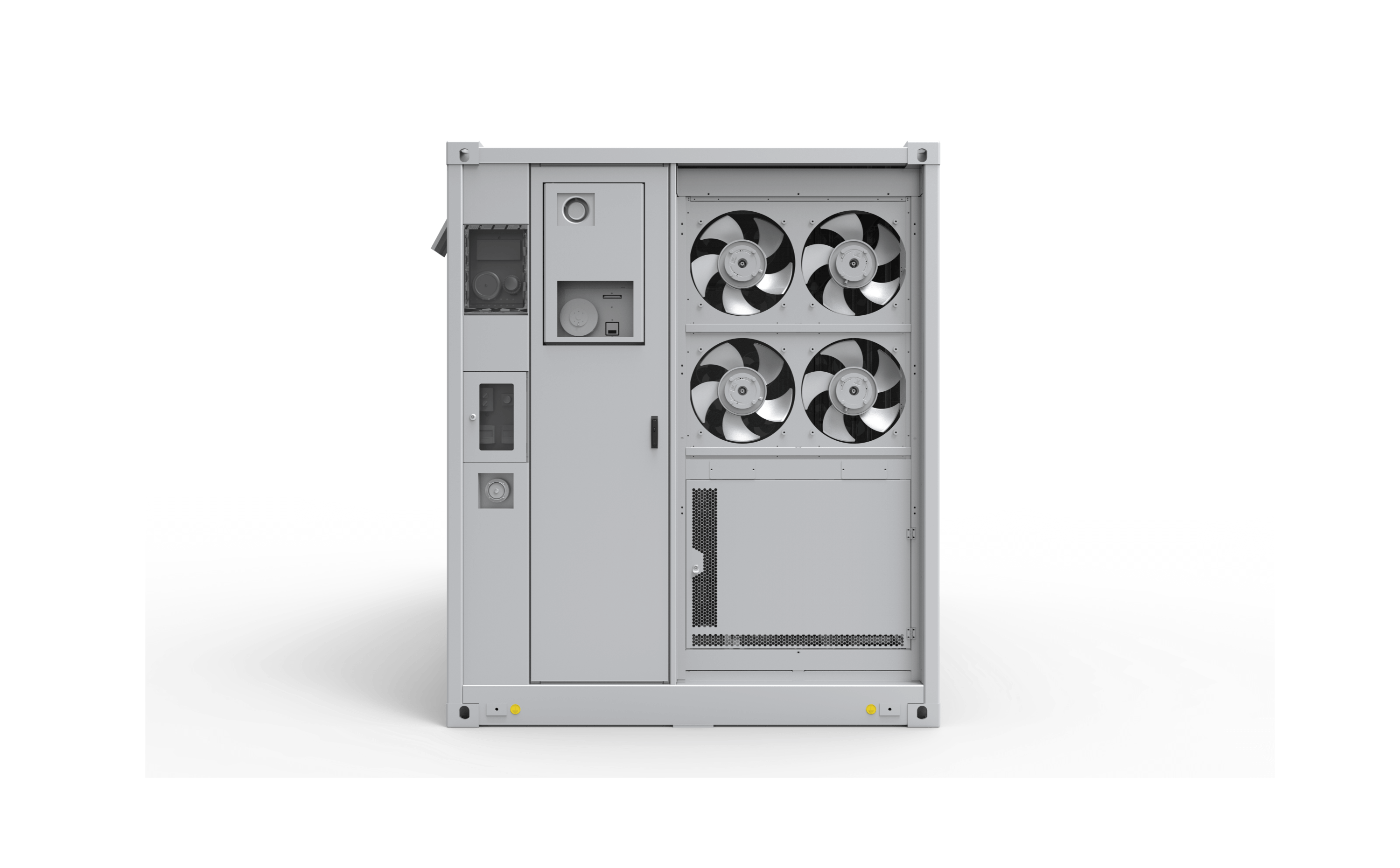

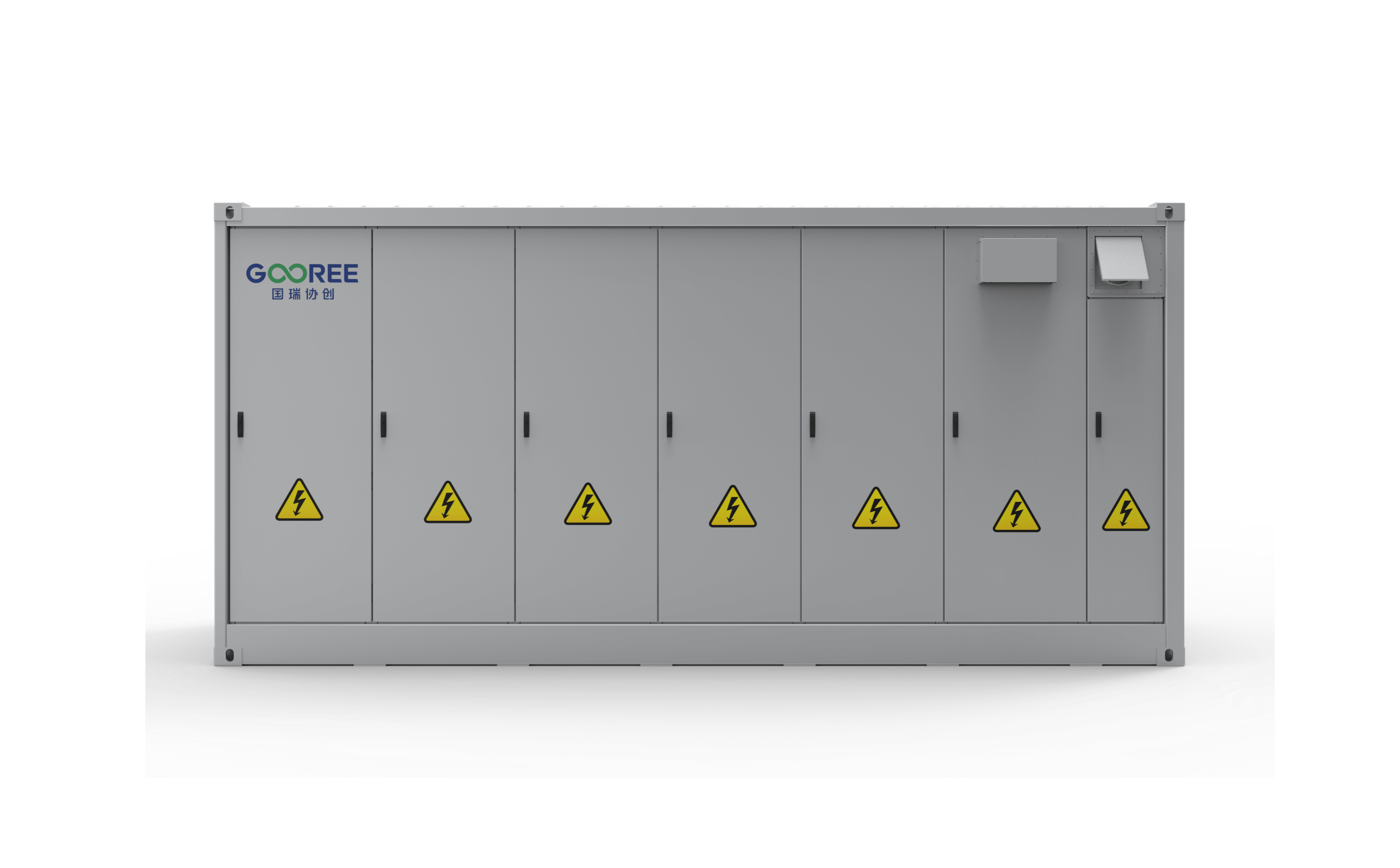

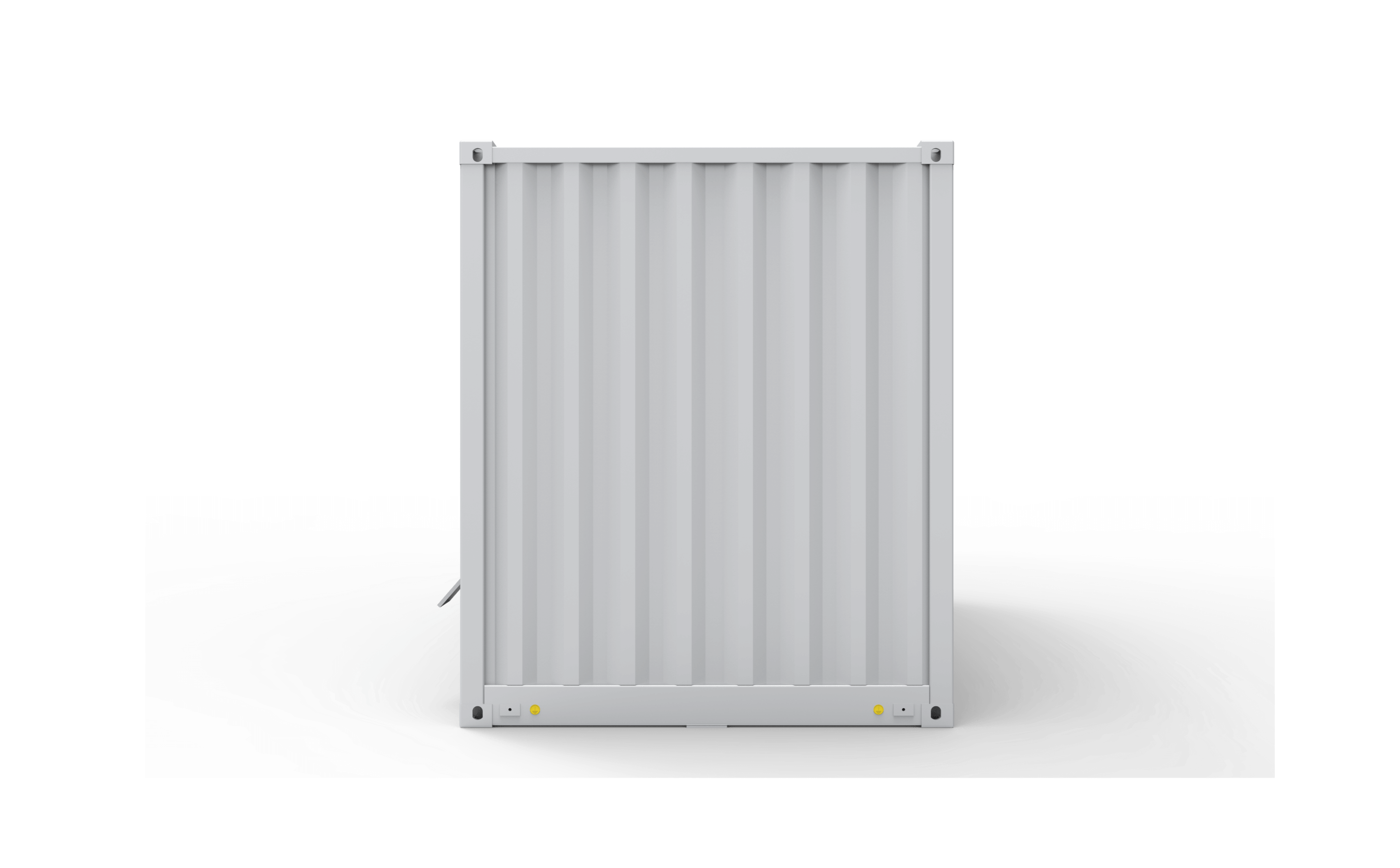

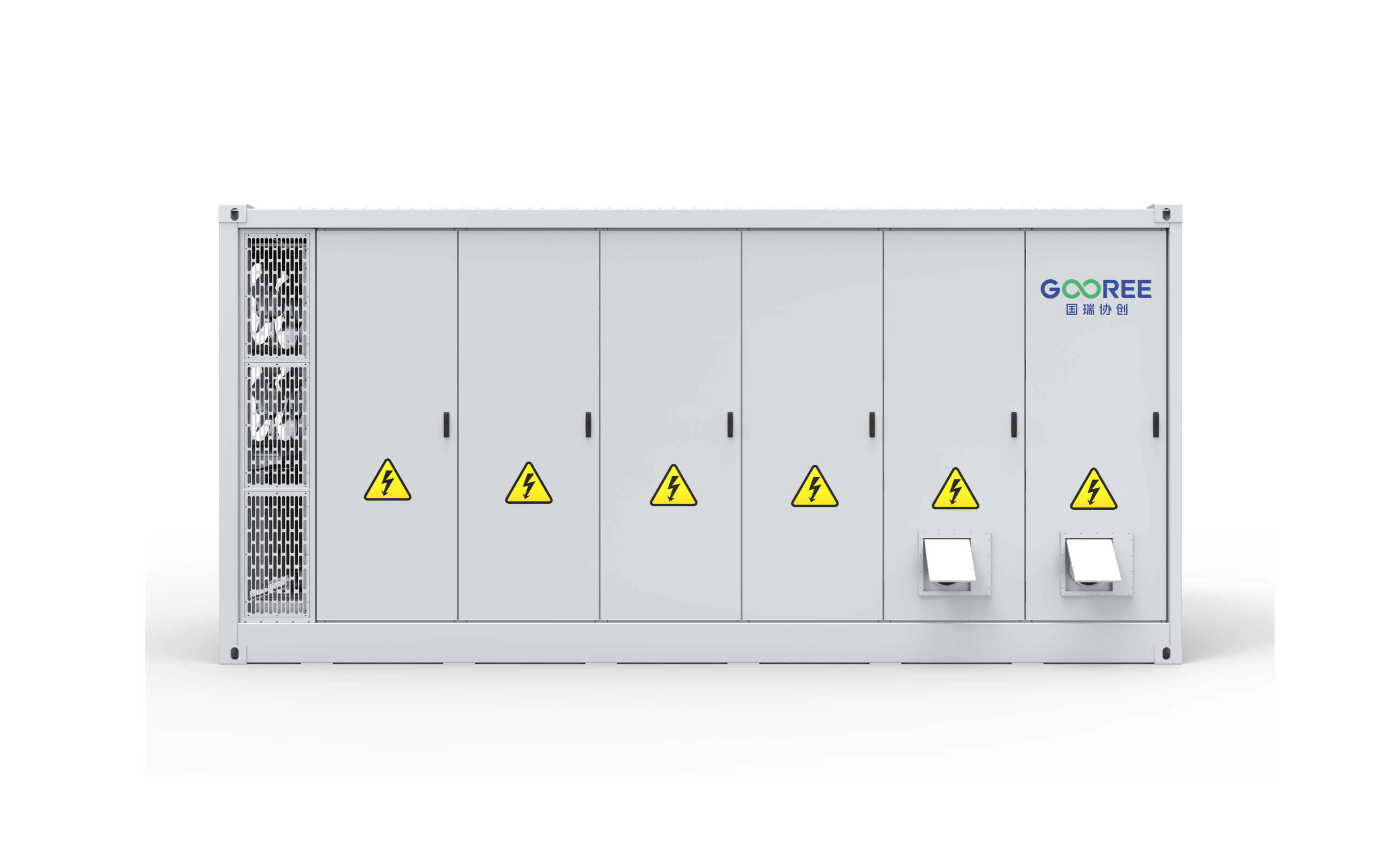

The GR5000L, developed by Guorui, is a DC battery cabinet available in both high- and low-voltage versions. It supports project-level customization and features Guorui’s in-house BMS and EMS, providing flexible solutions for diverse p...
|
Model |
GR5000L |
|
DC Side |
|
|
Cell type |
LFP / 314Ah |
|
Max battery capacity (BOL) |
5016 kWh |
|
System configuration |
(52S1P) 8S * 12 |
|
Rated DC voltage |
1331.2 V |
|
DC voltage range |
1123.2 ~ 1497.6 V |
|
Charge/discharge rate |
≤0.5P |
|
Cooling Method |
Liquid cooling |
|
System Parameter |
|
|
Dimension(W*H*D) |
6058 * 2896 * 2438 mm |
|
Weight |
≤ 43 T |
|
Cycle performance |
≥ 8000 cycles; @ 25 ± 2 ℃, 0.5P, SOH ≥ 70% |
|
Max System Efficiency |
94% |
|
Fire suppression system |
Aerosol / NOVEC1230 / FM200 (Support PACK level) + Flammable Gas Detection + Exhaust + Water Sprinkler System |
|
Operating ambient temperature range |
-30~55℃ (-30~-20℃ with Heater) |
|
Max operating altitude |
4,000m (de-rate between 2000-4000m.) |
|
Max IP rating |
IP55 |
|
Communication Protocol |
Modbus TCP / Modbus RTU / CAN 2.0 / IEC104 |
|
Communication Interface |
Ethernet / RS485 / CAN / Domestic 4G |
|
Remote monitoring |
Cloud EMS, Mobile APP |
|
Max Anti-corrosion Level |
C4 |
|
Certifications |
UN3536, UN38.3, IEC62619 |
|
Application scenarios |
Utility, C&I energy storage |
